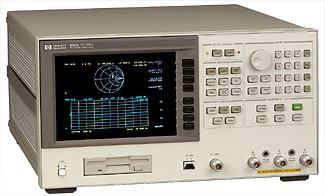

HP 8751A
5Hz to 500MHz Network Analyzer
- 5 Hz to 500 MHz
- ± 0.02 dB, ± 0.12° dynamic accuracy
- 0.001 Hz, 0.001 dB, 0.001 degree, 10 ps resolution
- Full 2-port and interpolative calibration
- Conjugate matching analysis
- Built-in 1.44 MB disk drive for save/recall
- Crisp color display
- 10 updates of 201 sweep points per second
- 0.4 ms/point fast list sweep (IFBW = 4 kHz)
- Eight active trace markers per channel
- HP Instrument BASIC for customization
- HP 41802A 1 MΩ input adapter
- List sweep for efficient measurement
|
 |
| The HP 8751A network analyzer is a high-throughput instrument with lab precision that covers 5 Hz to 500 MHz. The HP 8751A provides resolution of 0.001 Hz, 0.001 dB, 0.001 degree, and 10 ps for characterizing the linear behavior of either passive or active networks, devices, or components in the lab and the production test areas. The built-in 1.44 MB disk drive is for direct save/recall of instrument state, calibration data, and application programs for your customization. Dedicated 50/75 Ω S-parameter test sets, 50/75 Ω T/R test kits, and the 1 M Ω input adapters are all available. |
|
