• 45 MHz to 50 GHz / 110 GHz
• The fastest sweep mode available for any network analyzer
• Thru-Reflect-Line precision two-port calibration for coaxial measurements
• Line-Reflect-Match calibration for on-wafer and in-fixture applications
• Internal "adapter removal" feature for measuring noninsertable devices with exceptional accuracy
• Four S-parameter color display
• Data storage on an internal 3.5 disk drive or data output to a GPIB or serial (RS-232) plotter or printer

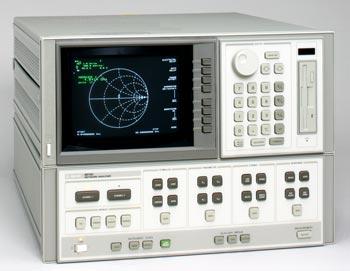

The 8510C system can be easily configured for making measurements at millimeter-wave frequencies. Hewlett Packard offers hardware for configuring systems in the 26.5 to 40 GHz, 33 to 50 GHz, 40 to 60 GHz, 50 to 75 GHz, and 75 to 110 GHz waveguide bands. These S-parameter configurations allow both forward and reverse measurements to be made with a single connection to the device under test. The greatest convenience and highest accuracy is assured through the TRL (Thru-Reflect-Line) calibration technique, which is now possible with a millimeter-wave S-parameter configuration.
